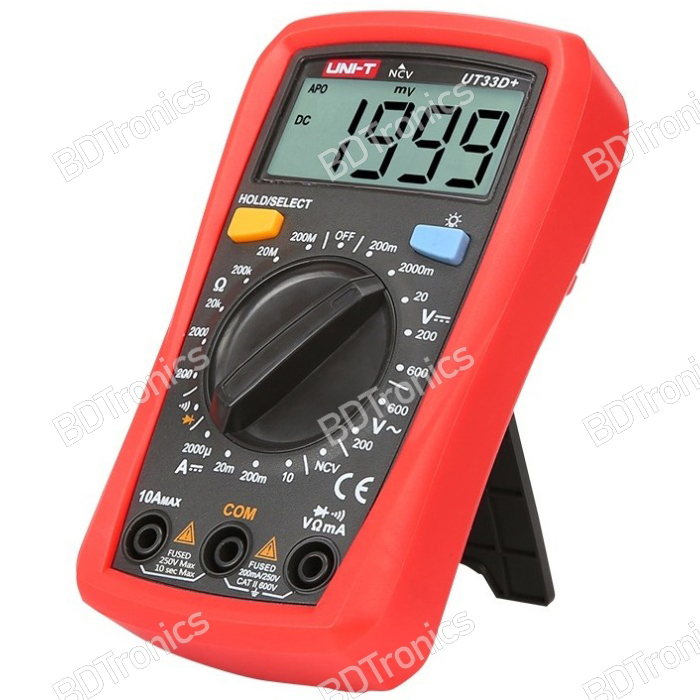

UNI-T UT33D+ digital pocket multimeter auto range 600V (CAT ll 600V) 10A AC DC Voltage Current Resistance +2mF Capacitance Tester Backlight Display.
UNI-T UT33D+ is a reliable and precise pocket digital multimeter with a durable protective case and a large LCD. The device measures AC/DC voltage, AC/DC current, resistance and capacitance, and is used for diode check and continuity test.
Features:
Specifications:
UT-33D+ is a universal digital meter used to measure: voltage, current, resistance.
| DC voltage measurement: | 200 mV ± (0.7% + 3) @ 0.1 mV , 2000 mV ± (0.5% + 2) @ 1 mV , 20 V ± (0.7% + 3) @ 10 mV , 200 V ± (0.7% + 3) @ 100 mV , 600 V ± (0.7% + 3) @ 1 V |
| AC voltage measurement: | 200 V ± (1.2% + 3) @ 100 mV , 600 V ± (1.2% + 3) @ 1 V |
| DC current measurement: | 2000 µA ± (1.0% + 2) @ 1 µA , 20 mA ± (1.0% + 2) @ 10 µA , 200 mA ± (1.0% + 2) @ 100 µA , 10 A ± (1.2% + 5) @ 10 mA |
| AC current measurement: | - |
| Resistance measurement: | 200 Ω ± (1.0% + 2) @ 0.1 Ω , 2 kΩ ± (0.8% + 2) @ 1 Ω , 20 kΩ ± (0.8% + 2) @ 10 Ω , 200 kΩ ± (0.8% + 2) @ 100 Ω , 20 MΩ ± (1.2% + 3) @ 10 kΩ , 200 MΩ ± (5.0% + 10) @ 100 kΩ |
| Capacitance measurement: | - |
| Inductance measurement: | - |
| Frequency measurement: | - |
| Temperature measurement: | - |
| Automatic change of measuring ranges: | - |
| hFE: | - |
| Diode test: | ✔ |
| Sound signal of the continuity test: | ✔ |
| Checking TTL logic states: | - |
| RS-232: | - |
| Main features: | Large, readable LCD display with backlight Freezing the last reading Low battery level alarm Aesthetic and solid construction |
| Power supply: | 2 x 1.5V, type AAA/LR03 battery - included |
| Weight: | 0.2 kg |
| Dimensions: | 134 x 77 x 47 mm |
| Manufacturer / Brand: | UNI-T |
