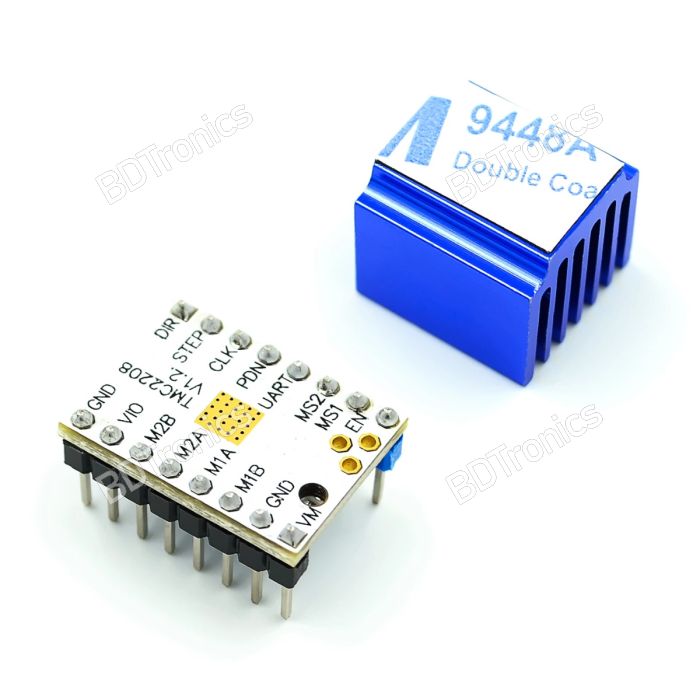

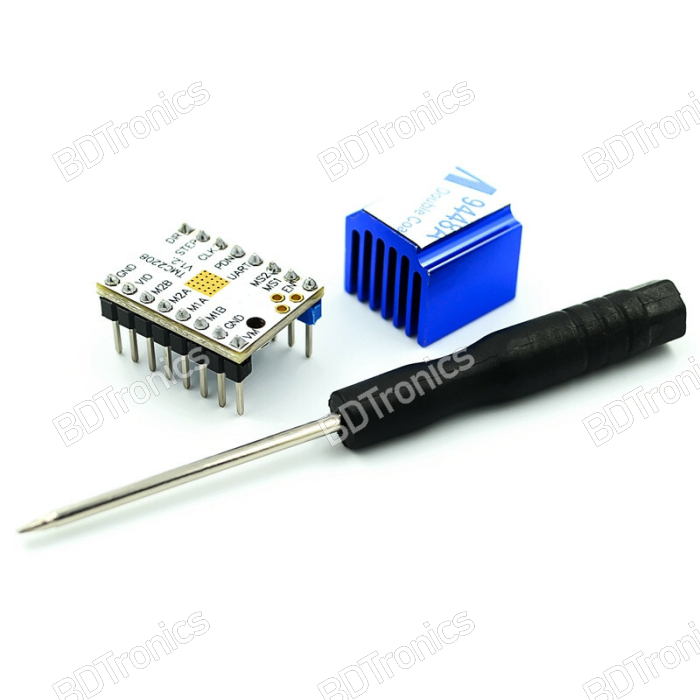

TMC2208 Stepper Motor Driver Module V1.2 for 3D Printers

TMC2208 is an ultra-quiet two-phase stepper motor driver for 3D Printers and CNC with continuous current 1.4A, peak current 2A, voltage range 4.75V-36V, 256 subdivision. It supports microPlyer 256 subdivisions, stealthChop2 ultra-quiet technology, UART and step/dir interface.

In stock

SKU PRD-00001196
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Features:

  • UART configuration interface (9600-500k Baud)
  • Power tube built-in drive current 1.4A ,peak current 2A, voltage range 4.75V-36V
  • Up to 256 native microsteps (without interpolation)
  • CoolStep ™ current dynamic adjustment technology, can save 70% of the energy
  • stealthChop2 - faster motor acceleration/deceleration than stealthChop
  • dcStep ™, stallGuard2 ™ stall detection technology
  • Automatic stealthChop and spreadCycle switchover depending on velocity
  • Hardware compatible with StepStick and Pololu A4988 Stepper Driver
  • Components on bottom PCB side for better heat emission
  • Automatic standby current reduction
  • SteaClthhop mute technology



Technical Specifications:

Model TMC2208
Interface Step/Dir
Configuration CFG Pins or UART
Native Microsteps up to 1/256
microPlyer Microsteps 1/256
Logic Voltage (VIO) 3-5V
Motor Voltage (VM) 5.5-36V
Motor Phase Current max 1.2A RMS, 2.0A Peak
Internal V- Regulator enabled
RDSon <=0.3 Ohm
stealthChop (quiet) yes
spreadCycle yes
coolStep no
stallGuard no
dcStep no



TMC2208 vs TMC2209 comparison:

  TMC2208 TMC2209
Interface Step/Dir Step/Dir
Configuration CFG Pins/ UART CFG Pins/ UART
Native microsteps 2 Up to 1/256 Up to 1/256
microPlayer microsteps 1/256 1/256
Logic supply voltage (VIO) 3-5V 3-5V
Motor supply voltage (VM) 5.5-35V 5.5-28V
Phase current max (RMS) 3 1.2A 2.0A
RDSon 0.3Ohm 0.2Ohm
Rsense 110 milliOhm 110 milliOhm
Internal V-regulator 4 Enabled Enabled
Standby current reduction Yes Yes
StealthChop Yes Yes
SpreadCycle Yes Yes
CoolStep - Yes
StallGuard - Yes



TMC2209 V1.1 have the following additional features:

  • StallGuard technology can be used to achieve senseless homing.
  • CoolStep provides a dynamic current regulation which can save upto 75% of electrical energy.
