SIM800L GPRS GSM Module with Micro SIM Card (Original Chip)
In stock
Order before 12.00PM

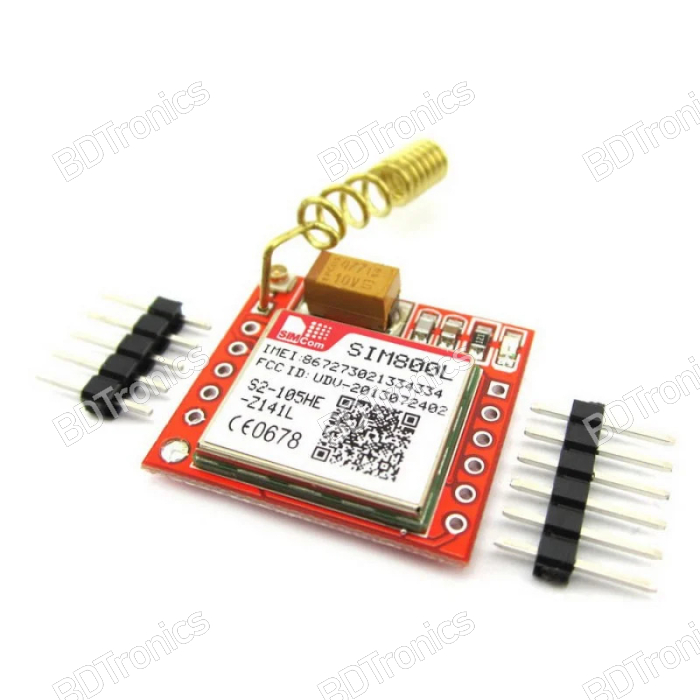

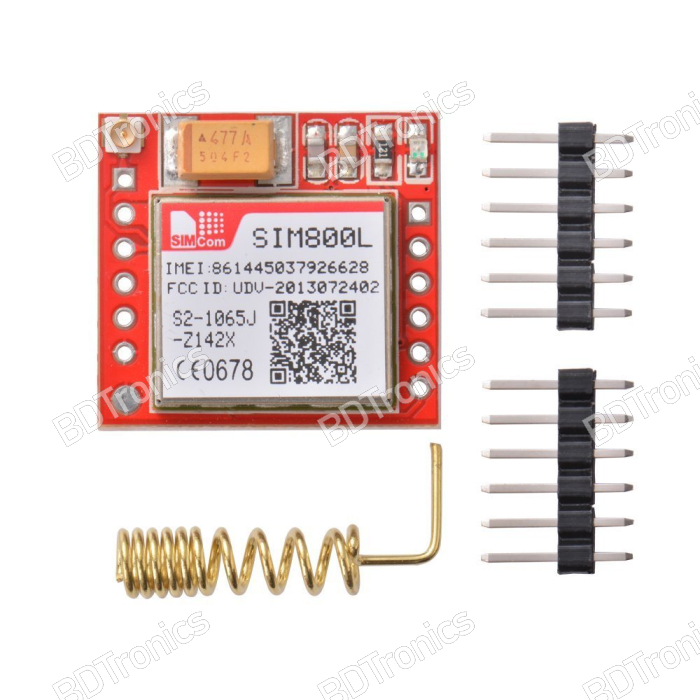

The SIM800L GPRS GSM Module with Micro SIM Card is a highly versatile communication module designed for global connectivity and integration into a range of electronic projects. Supporting quad-band frequencies (GSM850, EGSM900, DCS1800, PCS1900), it ensures seamless connection to any global GSM network with a 2G SIM. This module enables various functions, including making and receiving voice calls using an external 8Ω speaker and electret microphone, sending and receiving SMS messages, and transmitting GPRS data (TCP/IP, HTTP). Additionally, it can scan and receive FM radio broadcasts. With a transmit power of Class 4 (2W) for GSM850 and Class 1 (1W) for DCS1800, it delivers robust performance. It uses a serial-based AT command set for control and features FL connectors for cell antennas, supporting Micro SIM cards.
Specifications
- Model: SIM800L
- Chip: Original SIM800L Chip
- SIM Type: Micro SIM Card
- Frequency Bands:
- GSM850
- EGSM900
- DCS1800
- PCS1900
- GPRS:
- Class 12
- Power Supply:
- Operating Voltage: 3.4V to 4.4V (Typically 4V)
- Current Consumption: Up to 2A (peak transmission mode)
- Transmit Power:
- Class 4: 2W for GSM850
- Class 1: 1W for DCS1800
- Interface:
- UART (Serial Communication)
- Supports AT commands
- Data Rate:
- GSM: Up to 85.6 kbps
- GPRS: Up to 85.6 kbps
- Temperature Range:
- Operating Temperature: -40°C to +85°C
- Dimensions: Approximately 25mm x 23mm x 3mm
- Antenna: External GSM antenna (included or available separately)
- Additional Features:
- Voice call capabilities
- SMS functionality
- GPRS data transmission (TCP/IP, HTTP)
- FM radio scanning and reception
- Serial-based AT command set
- FL connectors for cell antennas
How to interface with an Arduino?
To interface a SIM800L GSM/GPRS module with an Arduino UNO, follow these steps:
1. Hardware Connections
Pin Connections:
-
Power Supply:
- SIM800L VCC: Connect to a stable 4.2V to 5V power supply. The SIM800L module can draw up to 2A during transmission, so it's best to use an external power source like a 5V regulated power supply or battery.
- GND: Connect to Arduino GND.
-
Serial Communication:
- SIM800L TX (Transmit): Connect to Arduino RX (Digital Pin 0).
- SIM800L RX (Receive): Connect to Arduino TX (Digital Pin 1). Note that the SIM800L operates at 2.8V logic levels, so you might need a level shifter or a voltage divider to drop the Arduino's 5V TX signal to 2.8V.
-
Additional Pins:
- RST (Reset): Connect to an Arduino digital pin if you want to control the module's reset function.
- KEY (Key): Connect to 3.3V to enable the module if necessary.
2. Code Example
Here’s a basic example to send an SMS using the SIM800L module:
#include <SoftwareSerial.h> // Create a software serial port to communicate with the SIM800L module SoftwareSerial sim800(7, 8); // RX, TX void setup() { // Start serial communication with the PC Serial.begin(9600); // Start serial communication with the SIM800L module sim800.begin(9600); // Give some time for the module to initialize delay(1000); // Send an SMS sendSMS("Your message here", "+1234567890"); // Replace with your message and recipient number } void loop() { // Nothing to do here } void sendSMS(String message, String number) { // Set SMS mode to text sim800.println("AT+CMGF=1"); delay(500); // Set the recipient number sim800.print("AT+CMGS=\""); sim800.print(number); sim800.println("\""); delay(500); // Send the message sim800.println(message); delay(500); // End the message with Ctrl+Z sim800.write(26); delay(500); // Print confirmation to the serial monitor Serial.println("SMS sent"); }
3. Testing
- Power Up: Connect the power supply to the SIM800L module.
- Upload Code: Upload the code to the Arduino UNO.
- Monitor Output: Open the Serial Monitor in the Arduino IDE to see debug messages. The module should send an SMS to the specified number.
4. Troubleshooting
- No Response: Ensure the module has adequate power. Verify that the connections are correct and the baud rate matches.
- SMS Not Sent: Check if the SIM card is properly inserted and has SMS capabilities. Ensure the network signal is strong enough.
5. Additional Tips
- Power Supply: Use a stable and sufficient power supply for the SIM800L. It’s a good practice to decouple the power supply with capacitors if you experience instability.
- AT Commands: Familiarize yourself with AT commands for more advanced functionalities, such as making calls or checking network status.
