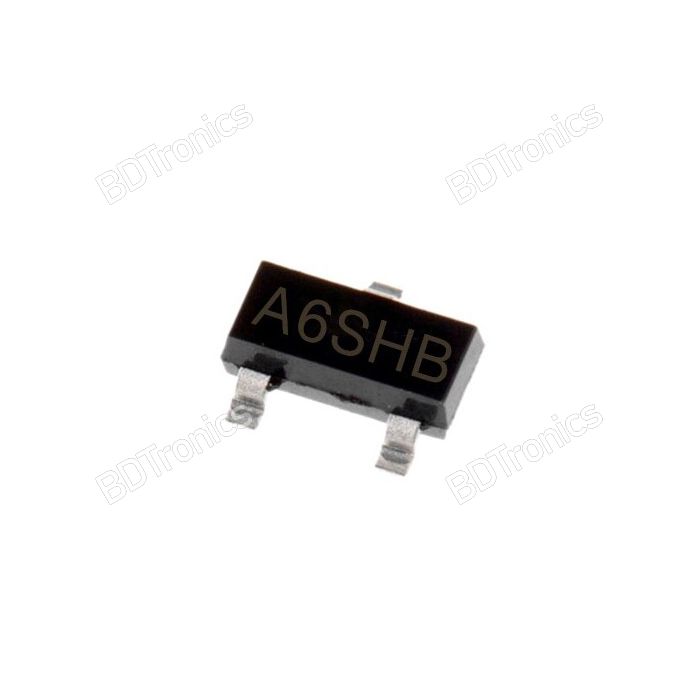

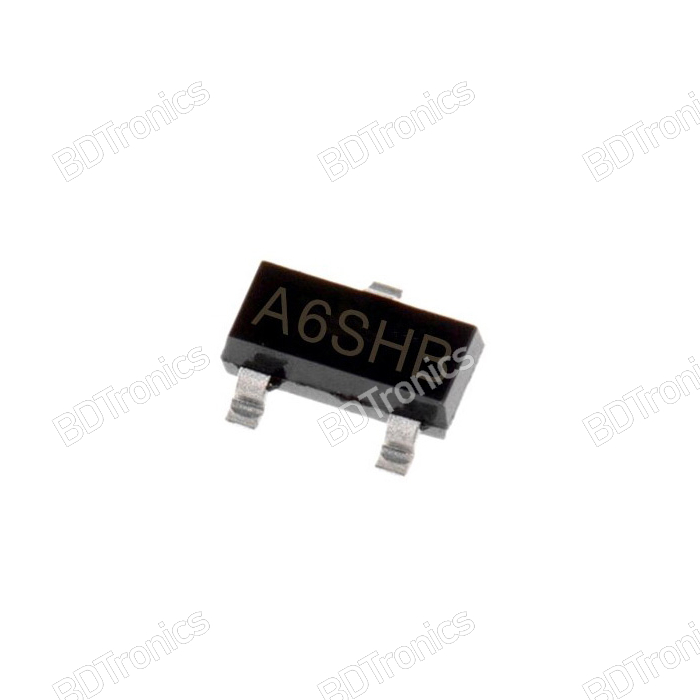

Si2306 Si2306DS A6SHB N-Channel 30V SMD MOSFET (Original)
4.8
13
In stock
The Si2306 is a N-channel enhancement mode field effect transistor. It is super high dense cell design for low R DS(ON), rugged and reliable, sSimple drive requirement. It comes as SOT-23 package with maximu drain to source voltage of 20V. It can deliver upto 3.6A of current while providing RDS(ON) 33mΩ at 4.5V VGS. ...See more
SKU
BTS-00001163
SF Code
C1.R3
...
BDT 15.00
Tags:
FETs
Delivery Info
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Order before 12.00PM
Outside Dhaka: 2-3 days
Cash on delivery all over BD
Quality
100% Authentic Product
Quality Product Guaranteed
Service
Safe & secure payment
Customer Support
Technical Specifications:
- Vds - Drain-Source Breakdown Voltage: 30 V
- Id - Continuous Drain Current: 3.16 A
- Rds On - Drain-Source Resistance: 38 mOhms
- Vgs - Gate-Source Voltage: - 20 V, + 20 V
- Vgs th - Gate-Source Threshold Voltage: 1 V
- Qg - Gate Charge: 9 nC
- Minimum Operating Temperature: - 55 C
- Maximum Operating Temperature: + 150 C
- Pd - Power Dissipation: 750 mW
- Channel Mode: Enhancement
- Fall Time: 6 ns
- Rise Time: 12 ns
- Typical Turn-Off Delay Time: 14 ns
- Typical Turn-On Delay Time: 7 ns
- Weight: 8 mg
See More
View all reviews above by our customers.
Customer Reviews
Price
4
Quality
4
Value
4
Maruf Hasan's review
Review by
Maruf Hasan
Package arrived in antistatic bag, sealed properly. Tested the Si2306 with my bench supply before using it. It matches the datasheet closely. I've ordered these before; this batch looks original. Will buy again.
Price
5
Quality
5
Value
5
Shafayat Hossain's review
Review by
Shafayat Hossain
আসল Si2306 পেয়েছি, প্যাকেজিং ভালো ছিল। বোর্ডে সোল্ডার করে ১২V লোড সুইচ করেছি, কোনো সমস্যা হয়নি। গরম হয় না, একদম ঠিক আছে। দামও যুক্তিসঙ্গত।
Price
5
Quality
5
Value
5
Jibon's review
Review by
Jibon
আমার কাছে মনে হচ্ছে এটাই আসল। হালকা, কিন্তু কাজ ভারী। বোর্ডে লাগানোর সময় খেয়াল রাখতে হবে পিন যেন ঠিক থাকে। পাওয়ার সাপ্লাই প্রজেক্টে বেশ ভালো পারফর্ম করেছে।
Price
5
Quality
5
Value
5
Nayeem's review
Review by
Nayeem
ছোট একটা MOSFET, কিন্তু কাজ দারুণ। আমার DC মোটর ড্রাইভারে ব্যবহার করেছি। Rds মান কম হওয়ায় ভোল্টেজ ড্রপ হয় না। সোল্ডার করা সহজ। সবাইকে রেকমেন্ড করব।
Price
5
Quality
5
Value
5
Tashrif Ahmed's review
Review by
Tashrif Ahmed
দাম According to quality thik e. কম ভোল্টেজ ড্রাইভার কাজে খুবই কার্যকর। ৩.৩ ভোল্ট লজিক দিয়েও চলে, তাই ESP32 এর সাথে ব্যবহার করলাম। বেশ কয়েকটি অর্ডার করেছি, সবগুলোই ভালো।
Price
5
Quality
5
Value
5
Siam's review
Review by
Siam
eta amar mobile charger circuit repair e laglo. First e dite onek tension chilo but soldering easy. Mosfet ta original, kono fake lage nai. Battery backup project e use korchi, fine hocche.
Price
4
Quality
5
Value
4
Ruman's review
Review by
Ruman
Bought for a class-D amp gate driver section. The fall and rise times are actually as listed. It doesn't heat up at 1A load. The only issue is the tiny package, need a steady hand and flux. Otherwise excellent.
Price
5
Quality
5
Value
5
Arindam Saha's review
Review by
Arindam Saha
product ta khub valo, original marka. 3.3V gate e thik moto on off korche. Ami koyek ta PCB project e use korlam, performance onek valo. Packaging valo chilo, delivery o fast chilo.
Price
5
Quality
5
Value
5
Nandita Roy's review
Review by
Nandita Roy
Khub choto part, but quality onek valo. Ami boro boro project e use korbo na, but small prototype e perfect. Delivery o time moto ashche. Original product, thank you seller.
Price
3
Quality
5
Value
4
Sujon's review
Review by
Sujon
Used this for a WiFi-controlled relay replacement. The gate threshold works perfectly at 3.3V, which is hard to find in MOSFETs. It switches a 12V fan smoothly and stays cool. Genuine component, no complaints at this price.
