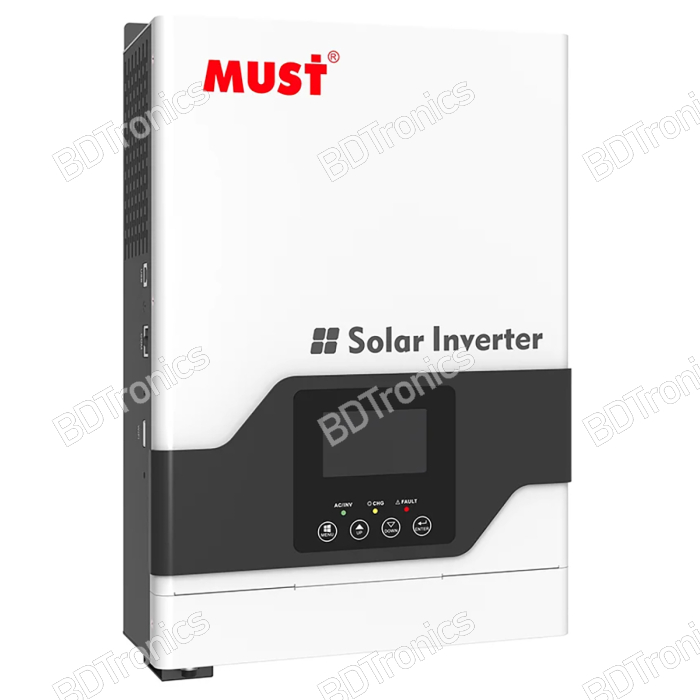

MUST 24V 2KW Off Grid Intelligent Pure Sine Wave Solar Inverter UPS MPPT Solar Charge Controller
Out of stock
This product is out of stock. Are you interested about this product?
Order before 12.00PM
Product Details / MUST 24V 2KW Off Grid Intelligent Pure Sine Wave Solar Inverter UPS MPPT Solar Charge Controller
- Supports both Lithium and Lead Acid Batteries.
- LCD and LED display
- Maximum PV voltage (VOC): 145VDC
- 60A MPPT solar charger
- 80A MAX charging current
- Pure sine wave output
- UPS mode support
- Efficiency: 90-93%
Specifications:
| Default Battery System Voltage | 24VDC | |
| INVERTER OUTPUT | ||
|---|---|---|
| Rated Power | 2000W | |
| Surge Power | 4000VA | |
| Waveform | Pure sine wave | |
| AC Voltage Regulation (Batt.Mode) | 220VAC~240VAC(Setting) | |
| Inverter Efficiency(Peak) | 90%~93% | |
| Transfer Time | 10ms(UPS / VDE4105) / 20ms(APL) | |
| AC INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) | |
| Frequency Range | 50Hz / 60Hz (Auto sensing) | |
| BATTERY | ||
| Normal voltage | 24VDC | |
| Floating Charge Voltage | 27.4VDC | |
| Overcharge Protection | 30VDC | |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage | 145VDC | |
| PV Array MPPT Voltage Range | 30~120VDC | |
| Standby Power Consumption | ||
| Maximum PV Array Power | 1500W | |
| Maximum Solar Charge Current | ||
| Maximum Efficiency | ||
| Maximum AC Charge Current | 20A or 30A | |
| Maximum Charge Current | 80A | |
| MECHANICAL SPECIFICATIONS | ||
| Machine Dimensions (W*H*D)(mm) | 272*355*100 | |
| Package Dimensions (W*H*D)(mm) | 485*393*251 | |
| Net Weight(kg) | 7.4 | |
| Gross Weight(kg) | 9.5 | |
| OTHER | ||
| Humidity | 5% to 95% Relativ Humidity (Non-condensing) | |
| Operating Temperature | 0°C~50°C | |
| Storage Temperature | -15°C -60°C | |
