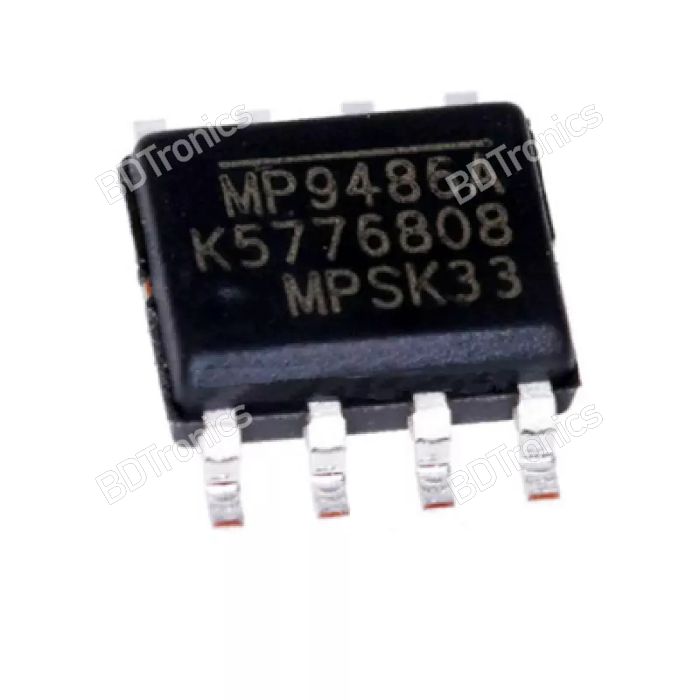

MP9486 100VDC Input 1A SMD DC-DC Buck Converter IC

The MP9486 is a high-voltage, step-down, switching regulator that delivers up to 1A of continuous current to the load. It integrates a high-side, high-voltage, power MOSFET with a current limit of 2.5A, typically. The wide 4.5V to 100V input range accommodates a variety of step-down applications.

In stock

SKU PRD-00002686
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

The MP9486 is a high-voltage, step-down, switching regulator that delivers up to 1A of continuous current to the load. It integrates a high-side, high-voltage, power MOSFET with a current limit of 2.5A, typically. The wide 4.5V to 100V input range accommodates a variety of step-down applications, making it ideal for automotive, industry, and lighting applications. Hysteretic voltage-mode control is employed for very fast response. MPS’s proprietary feedback control scheme minimizes the number of required external components.


The switching frequency can be up to 1MHz, allowing for small component size. Thermal shutdown and short-circuit protection (SCP) provide reliable and fault-tolerant operations. A 170µA quiescent current allows the MP9486 to be used in battery-powered applications.


The MP9486 is available in a SOIC-8 package with an exposed pad. The datasheet and resources for this IC can be found here: https://www.monolithicpower.com/en/mp9486.html

Specificaitons:

  • Wide 4.5V to 100V DC Input Range
  • Hysteretic Control: No Compensation
  • Up to 1MHz Switching Frequency
  • PWM Dimming Control Input for LED Application
  • Short-Circuit Protection (SCP) with Integrated High-Side MOSFET
  • 170μA Quiescent Current
  • Thermal Shutdown
  • Available in a SOIC-8 Package with an Exposed Pad
