The Nema 23 CNC Stepper Motor JK57HS76-2804 is a high-performance, industrial-grade stepper motor engineered for CNC routers, CNC mills, 3D printers, plasma cutters, laser machines, robotics, automation systems, and precision motion applications in Bangladesh. With a strong 1.89N.m (19.2kg-cm) holding torque, this motor delivers stable, accurate, and repeatable movement for demanding mechanical loads. Designed with a hybrid stepping structure, it offers smooth motion, fast response, and superior efficiency for professional and hobby CNC setups.

Features:

• Heavy-duty Nema 23 hybrid stepper motor ideal for CNC machinery and industrial motion control

• High torque output delivering 1.89N.m / 19.2kg-cm holding torque at 3A per phase

• 1.8° precise step angle for accurate positioning and motion control

• Excellent response to start, stop, and reverse pulses from stepper motor drivers

• Supports high mechanical loads with strong radial and axial force tolerance

• Durable construction with high insulation resistance (100MΩ min at 500VDC)

• Capable of operating in wide ambient temperatures from -20°C to +50°C

• Designed for stable performance under continuous operation

• Suitable for CNC upgrades, replacement motors, heavy-load axes, and industrial automation

How to Use:

• Connect the motor to a compatible stepper motor driver rated for 3A per phase

• Mount the motor securely on CNC or mechanical assemblies using Nema 23 standard mounting holes

• Match the wiring with A+ A- B+ B- connections for accurate coil pairing

• Tune microstepping and current settings on the driver for optimal torque and noise performance

• Ensure proper shaft alignment to avoid excessive radial or axial load

• Use flexible couplings or timing pulleys appropriate for 8mm shaft diameter

• Provide adequate ventilation or cooling in heavy-duty continuous applications

Wiring Instructions (4-Wire Bipolar):

• RED: A+

• BLUE: A-

• GREEN: B+

• BLACK: B-

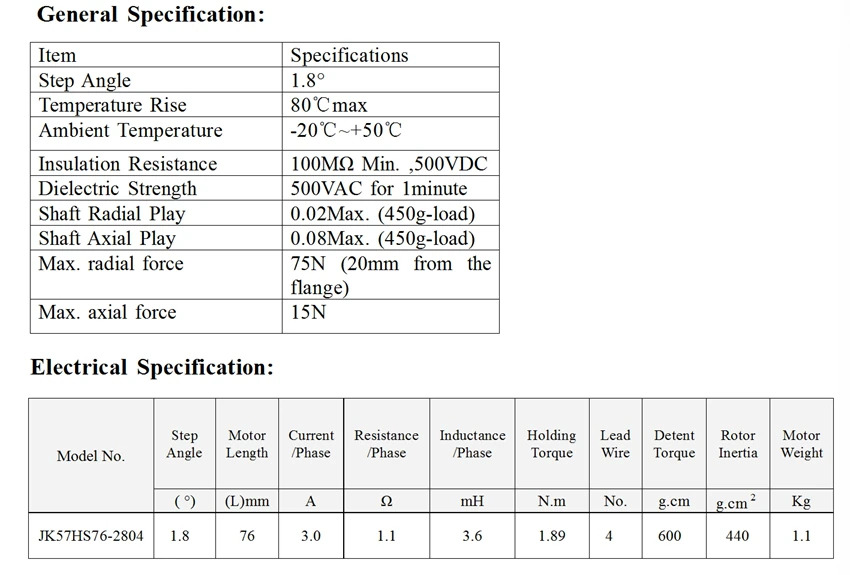

General Specification:

• Step Angle: 1.8°

• Temperature Rise: 80°C max

• Ambient Temperature: -20°C to +50°C

• Insulation Resistance: 100MΩ min at 500VDC

• Dielectric Strength: 500VAC for 1 minute

• Shaft Radial Play: 0.02mm max (450g load)

• Shaft Axial Play: 0.08mm max (450g load)

• Maximum Radial Force: 75N (20mm from flange)

• Maximum Axial Force: 15N

Electrical Specification:

• Model: JK57HS76-2804

• Step Angle: 1.8°

• Motor Length: 76mm

• Current/Phase: 3.0A

• Resistance/Phase: 1.1Ω

• Inductance/Phase: 3.6mH

• Holding Torque: 1.89N.m (19.2kg-cm)

• Detent Torque: 600g.cm

• Rotor Inertia: 440g.cm²

• Lead Wires: 4 wires

• Motor Weight: 1.1kg

• Shaft Diameter: 8mm (Single Shaft D-Type)

Applications:

• CNC router X/Y/Z axes

• 3D printers and industrial additive manufacturing

• Robotics and automation systems

• Engraving machines, laser cutters, plasma cutters

• Packaging machines and conveyor systems

• Precision motion systems in research and engineering

• DIY CNC machines, machine upgrades, and heavy-load motion control
