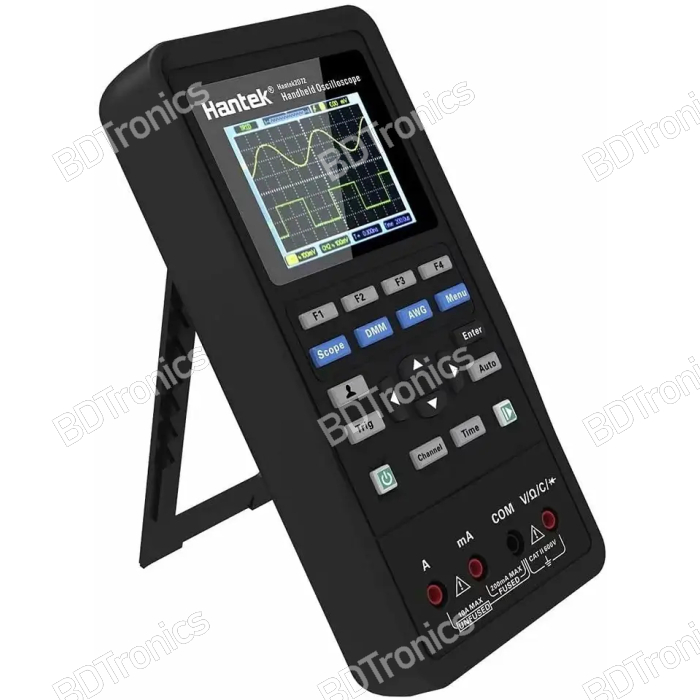

Hantek 2D72 2-Channels 70MHz 250MSa/s 3in1 Digital Oscilloscope Portable Waveform Generator Multimeter

Hantek 2D72 3-in-1 USB portable multi meter, oscilloscope, waveform Generator. This multi-purpose station own three universal test instrument functions.

In stock

SKU PRD-00003862
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment

Customer Reviews

Quality
star star star star star
Value
star star star star star
Price
star star star star star
Good emoji-happy
Review by
Good product
Quality
star star star star star
Value
star star star star star
Price
star star star star star
Genuine emoji-happy
Review by
জেনুইন ওসিলসকপ। সবকিছু ঠিক আছে। প্রাইসের জন্য স্টার কম পেল।
Quality
star star star star star
Value
star star star star star
Price
star star star star star
Best oscilloscope emoji-happy
Review by
Best portable oscilloscope, genuine product.
Quality
star star star star star
Value
star star star star star
Price
star star star star star
Good emoji-happy
Review by
Good product

4 Item(s)

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

An all-new handheld oscilloscope Hantek 2D72 is a compact and lightweight concept but with a new generation of 3 in 1 multifunction tester: oscilloscope, signal source and multimeter; A small volume of the non-profit grip by a single hand; The suspendingstand was designed to support multi-angle adjustment; Ultra-low-power, Type C charging interface, each 2 hours battery charge allow working one full day or standbytwo months; High-definition color LCD screen display clear and delicate; Minimalist keyboard design simplifyoperation, easy to use.

Features:

  • Oscilloscope + Waveform Generator + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers.
  • Intelligent charging control: Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy;
  • Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;
  • Large-capacity lithium battery power supply:  18650 replaceable lithium battery power system, free from replace battery;
  • 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone;
  • AUTO one-key test: Magic tool and essential function for test newbie;
  • Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime;
  • One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective;
  • Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free;
  • Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately;
  • One-click switching its Chinese and English language menu;
  • Color LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify;
  • Minimalist keyboard design simplify operation, convenient to use;
  • Unibody casing: fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;
  • Self-calibration function: free from level drift after long time unused;
  • Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;
  • Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;
  • Function of video help: scan code on back of machine to get help of video course;
  • The PC software supports windows7/8/10 32-bit and 64-bit.









Specifications:

  • Horizontal
    • Sample Rate Range: 250MSa/s (Single-channel), 125MSa/s (Dual-channel)
      Waveform Interpolation: (sin x)/x
    • Record Length: Max. 6K for single-channel;
    • 3K samples per dual-channel
      SEC/DIV Range: 5ns/div~500s/div 1, 2, 5 sequence
  • Vertical
    • A/D Converter: 8-bit resolution,each channel sampled simultaneously
      VOLTS/DIV Range: 10mV/div~10V/divat input BNC
    • Bandwidth Limit, typical: 20MHz
    • Low Frequency Response (-3db): ≤10Hz at BNC
    • Rise Time at BNC, typical: ≤5ns
    • DC Gain Accuracy: ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
    • Note: Bandwidth reduced to 6MHz when using a 1X probe.
    • Acquisition Modes: Normal
  • Trigger
    • Type: Edge
    • Mode: Auto, Normal, single
    • Level: ±4 divisions from center of screen
    • Trigger Level Accuracy: 0.2div X volts/div within ±4 divisions from center of screen
      Slope: Rising, Falling, Rising & Falling
    • Source: CH1/CH2
  • Input
    • Coupling: DC, AC or GND
    • Input Impedance,DC coupled: 25pF±3 pF, 1MΩ±2%
    • Probe Attenuation: 1X, 10X
    • Supported Probe Attenuation Factors: 1X, 10X, 100X, 1000X
    • Maximum Input Voltage: 150VRMS
  • Measurement
    • Automatic Measurements: Frequency, Amplitude
    • Arbitrary Waveform Generator Mode
    • Waveform Frequency: Sine: 1Hz~25MHz; Square: 1Hz~10MHz; Ramp: 1Hz~1MHz; EXP: 1Hz~5MHz
    • Sampling: 250MSa/s
    • Amplitude: 2.5Vpp(50Ω): 5Vpp(High impedance)
    • Frequency Resolution: 0.10%
    • Channel: 1CH waveform output
    • Waveform Depth: 512Sa
    • Vertical Resolution: 12 bit
    • Output Impedance: 50 Ω



Pacakge including:

  • 1 * Probe
  • 2 * Clip Probe
  • 1 * Type Charging Cable
  • 1  *PowerAdapter
  • 1 * Multineter Probe
  • 1 * Hantek bag
  • 1 * Instruction manual
