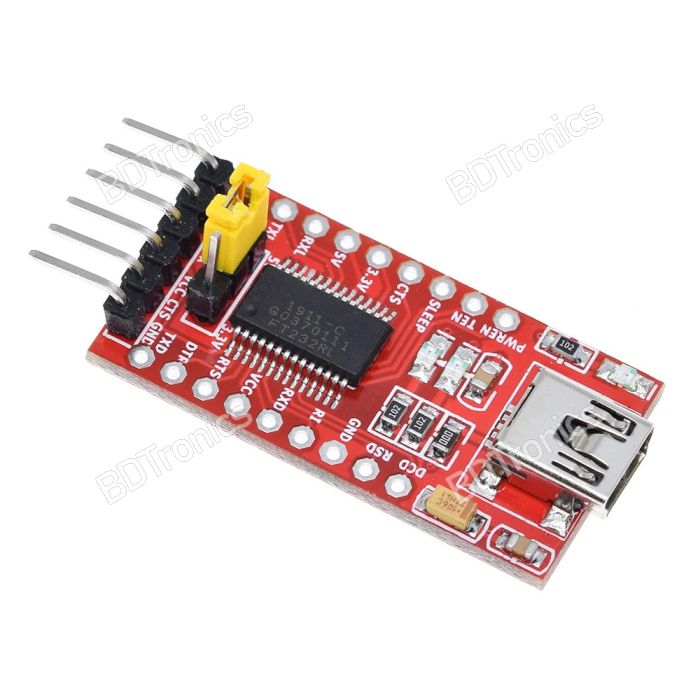

FT232RL FTDI USB UART TTL 3.3V 5.5V Serial Adapter Module
FT232RL FTDI is a USB to TTL serial adapter allows you to connect TTL serial devices to a PC through a USB port. This adapter supports both 5V AND 3.3V operational , pin 3 on the 6 pin connector can be connected to the USB supply 5VDC or to the 3V3 regulator output on the FTDI chip.
In stock
SKU PRD-00000783
...
BDTÂ 348.00
BDTÂ 396.00
Delivery Info
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Order before 12.00PM
Outside Dhaka: 2-3 days
Cash on delivery all over BD
Quality
100% authentic product
Quality product guaranteed
Service
7 days easy return
Safe & secure payment
Customer Support
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Product Details / FT232RL FTDI USB UART TTL 3.3V 5.5V Serial Adapter Module
In 5V mode the maximum current draw on this pin is approximately 500mA.
In 3.3V mode the maximum current draw on VCC is approximately 50mA.
This board has the following pin layout:
- DTR PIN needed to auto-reset Arduino when downloading to your device.
- VCCÂ PIN is ideal for powering small devices such as homemade circuits.
- CTS PIN Clear To Send - an input used for flow control
- GND PIN to GND on your device
- RX PIN is Serial data Receive pin
- TX PIN is Serial data Transmit pin
- RXD/TXD Transceiver communication LED indicator
