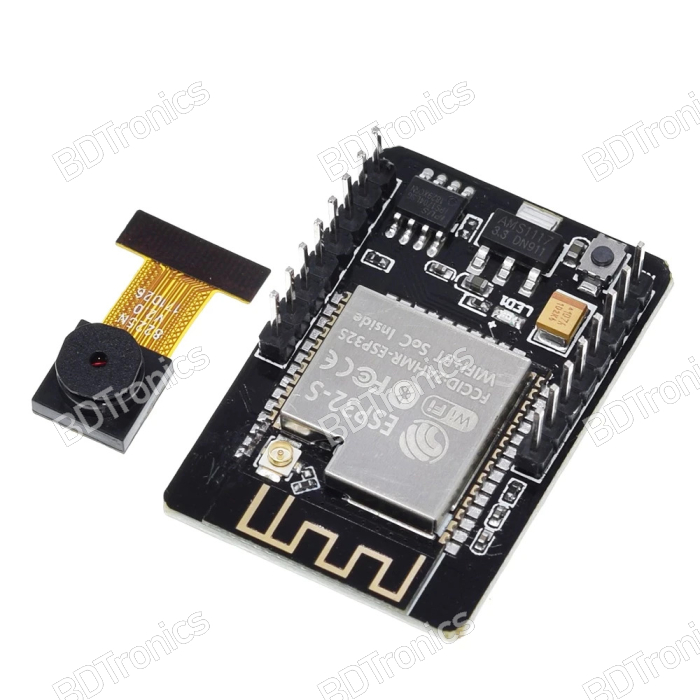

ESP32-CAM WiFi + Bluetooth + Camera Module (OV2640 2MP) Development Board

The ESP32-CAM is a full-featured microcontroller that also has an integrated Video Camera and microSD card socket.  It’s inexpensive and easy to use, and is perfect for IoT devices requiring a camera with advanced functions like image tracking and recognition.

If you want to buy Programmer, please visit:
https://www.bdtronics.com/esp32-mb-usb-cam-wifi-bluetooth-development-board-burning-tool-programmer.html

ESP32-CAM features:

• The smallest 802.11b/g/n Wi-Fi BT SoC module
• Low power 32-bit CPU,can also serve the application processor
• Up to 160MHz clock speed, summary computing power up to 600 DMIPS
• Built-in 520 KB SRAM, external 4MPSRAM
• Supports UART/SPI/I2C/PWM/ADC/DAC
• Support OV2640 and OV7670 cameras, built-in flash lamp
• Support image WiFI upload
• Support TF card
• Supports multiple sleep modes
• Embedded Lwip and FreeRTOS
• Supports STA/AP/STA+AP operation mode
• Support Smart Config/AirKiss technology
• Support for serial port local and remote firmware upgrades (FOTA)

ESP32-CAM Pinouts:

There are three GND pins and two pins for power: either 3.3V or 5V.

GPIO 1 and GPIO 3 are the serial pins. You need these pins to upload code to your board. Additionally, GPIO 0 also plays an important role, since it determines whether the ESP32 is in flashing mode or not. When GPIO 0 is connected to GND, the ESP32 is in flashing mode.

The following pins are internally connected to the microSD card reader:

• GPIO 14: CLK
• GPIO 15: CMD
• GPIO 2: Data 0
• GPIO 4: Data 1 (also connected to the on-board LED)
• GPIO 12: Data 2
• GPIO 13: Data 3
