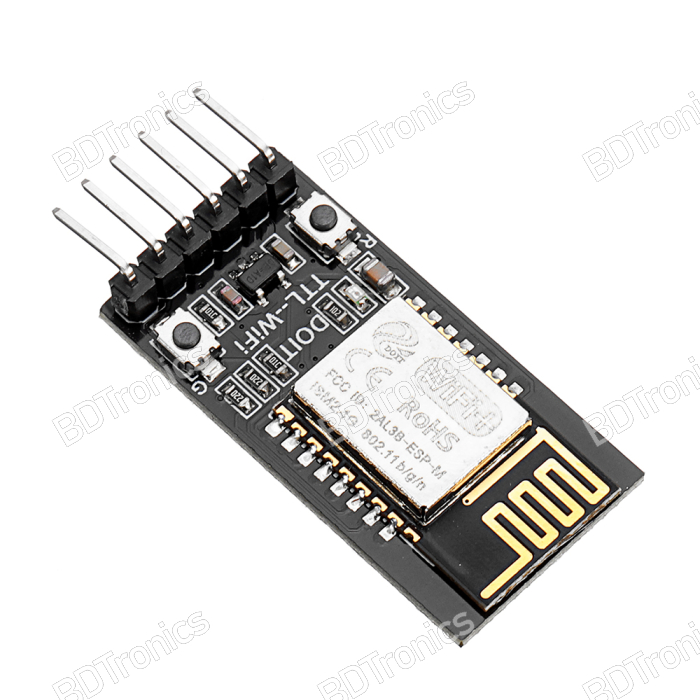

DT-06 Wireless TTL to WiFi module
DT-06 is a wireless module based on ESP8285 ESP M2 module. It provides easy to use WIFI to any UART Serial port and is pin compatible to HC-06 Bluetooth modules. If a project already uses Bluetooth then you can very easily convert into WiFi without any change in code.
In stock
SKU PRD-00002718
BDT 475.00
Delivery Info
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Order before 12.00PM
Outside Dhaka: 2-3 days
Cash on delivery all over BD
Quality
100% authentic product
Quality product guaranteed
Service
7 days easy return
Safe & secure payment
Customer Support
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Product Details / DT-06 Wireless TTL to WiFi module
Features:
- Using the built-in web interface transparent WIFI-UART communcation can be setup for TCP or UDP sockets on any port.
- This module requires NO configuration to get started!
- This module powers up as a standalone AccessPoint at DOIT_WIFI_XXXX with an IP address of 192.168.4.1.
- Any message sent to 192.168.4.1 on port TCP 9000 will be sent to TX/RX @ 9600bps and vice-versa.
- Connect module to Arduino or TX/RX of USB to Serial adapter.
- Connect phone or PC via Wifi to AccessPoint (SSID will show up as DOIT_WIFI_XXXX or something similar -- no password).
- Use a TCP Terminal or your own applications to send and receive messages to and from 192.168.4.1 on port TCP 9000.
Specifications:
- Fully compatible with the original electrical interface and physical interface for the serial transparent Bluetooth.
- Built-in the industrial transparent transmission firmware V3.0 with stability and reliability by using the Web Configuration.
- Built-in the high performance WiFi module ESP-M2 with size : 34mm*17mm*4mm.
- Working voltage : 4.5V~6.0V
- TTL working voltage : 3.3V (compatible with 5.0V).
- Provided pins : STATE, TXD, RXD,EN.
- Average current : 80mA; when data sent, it is 170mA; It is 20μA at deep sleep mode.
- Support serial AT command.
- Support re-programmable, OTA firmware update.
- Seamless transparent transmission between serial and WiFi.
- Built-in HTTP Web Server, support configure parameters by web page.
- Support re-connect automatically at WiFi STA mode and TCP Client.
- Support set baud rate, data bit, parity check, stop bits, and/or subcontracting time.
- Support baud rate (bps) 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 74800, 115200, 230400, 460800, 921600, 1843200, 3686400.
- Support AP enable, self-defined SSID/password, self-defined IP and network duration.
- Automatically scan the peripheral WiFi hotspot, support STA enable,DHCP, self-defined IP.
- Support TCP Server, TCP Client, UDP Server, UDP Client and UDP local broadcast.
- Support DNS resolution automatically for the remote sever address.
- Support checking the status by AT commanD.
- Provide IO4 to show the WiFi status.
- Working temperature : -40°C-125°C.
