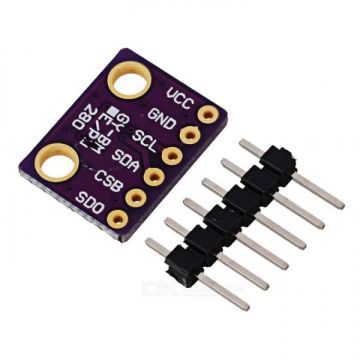

Technical Specifications:

• Pressure range: 300 ~ 1100hPa (altitude 9000m~-500m)
• Power supply voltage: 1.71V~3.6V
• Accuracy between 700 to 900hPa and 25 to 40 deg. C: ±0.12hPa and ±1.0m
• LCC8 Package: Lead-Free Ceramic Carrier Package (LCC)
• High precision: 0.06hPa (0.5m) resolution in low power mode, 0.2Pa (1.7cm) resolution in high linear mode temperature output
• 12C interface, SPI interface temperature compensation
• Temperature compensation
• Size: 1.5cmx 1.15cm
• Low power consumption: 2.7uA
• Peak current: 1.12mA
• No external clock circuit required

Applications:

• Get more precise temperature, atmospheric pressure values, and approximate altitude data
• Enhancement of GPS navigation (e.g. time-tofirst-fix improvement, dead-reckoning, slope detection)
• Indoor navigation (floor detection, elevator detection)
• Outdoor navigation, leisure and sports applications
• Weather forecast
• Health care applications (e.g. spirometry)
• Vertical velocity indication (e.g. rise/sink speed)

How to Interface BMP280 with Arduino?

To interface the BMP280 sensor with an Arduino Uno, you'll need to connect the sensor to the Arduino and use a library to read data from the sensor. The BMP280 is a barometric pressure and temperature sensor, and it communicates over I2C.

Materials Needed:

• BMP280 sensor
• Arduino Uno
• Jumper wires
• Breadboard (optional)

Connections:

1. Power Supply:

   • VCC on BMP280 to 5V on Arduino (or 3.3V if the BMP280 module is designed for 3.3V operation).
   • GND on BMP280 to GND on Arduino.

2. I2C Communication:

   • SCL on BMP280 to A5 (SCL) on Arduino Uno.
   • SDA on BMP280 to A4 (SDA) on Arduino Uno.

Code Example:

You will need the Adafruit_BMP280 library to interact with the BMP280 sensor. Install it via the Arduino Library Manager or from GitHub.

Here's a basic example code to get you started:

#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BMP280.h>

// Create an instance of the BMP280 sensor
Adafruit_BMP280 bmp;

void setup() {
  Serial.begin(9600);

  // Initialize the sensor
  if (!bmp.begin(0x76)) { // Check the I2C address, it can also be 0x77
    Serial.println("Could not find a valid BMP280 sensor, check wiring!");
    while (1);
  }

  Serial.println("BMP280 sensor ready!");
}

void loop() {
  // Read temperature and pressure
  float temperature = bmp.readTemperature();
  float pressure = bmp.readPressure();

  // Print temperature and pressure values
  Serial.print("Temperature = ");
  Serial.print(temperature);
  Serial.println(" *C");

  Serial.print("Pressure = ");
  Serial.print(pressure / 100.0F); // Convert Pa to hPa
  Serial.println(" hPa");

  delay(2000); // Wait a bit between readings
}

Libraries:

• Adafruit BMP280: Provides functions to interact with the BMP280 sensor.
• Wire: Handles I2C communication.

Additional Notes:

• The BMP280 can have two possible I2C addresses: 0x76 or 0x77. The address is set by a pin on the sensor. Ensure the address in the bmp.begin() function matches the actual address of your sensor.
• The Adafruit_BMP280 library simplifies the process of reading temperature and pressure from the BMP280 sensor.
• You can use the serial monitor to view the temperature and pressure readings.

If you have any issues or questions about the setup or code, feel free to ask!
