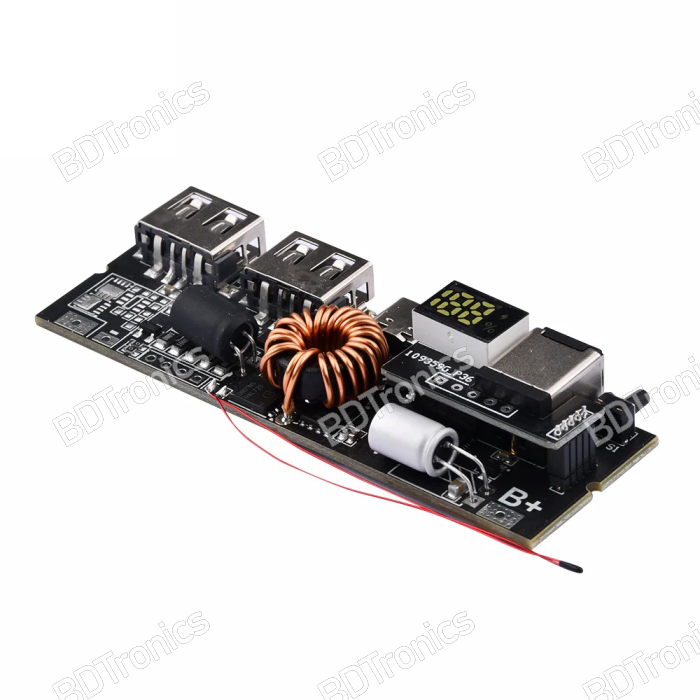

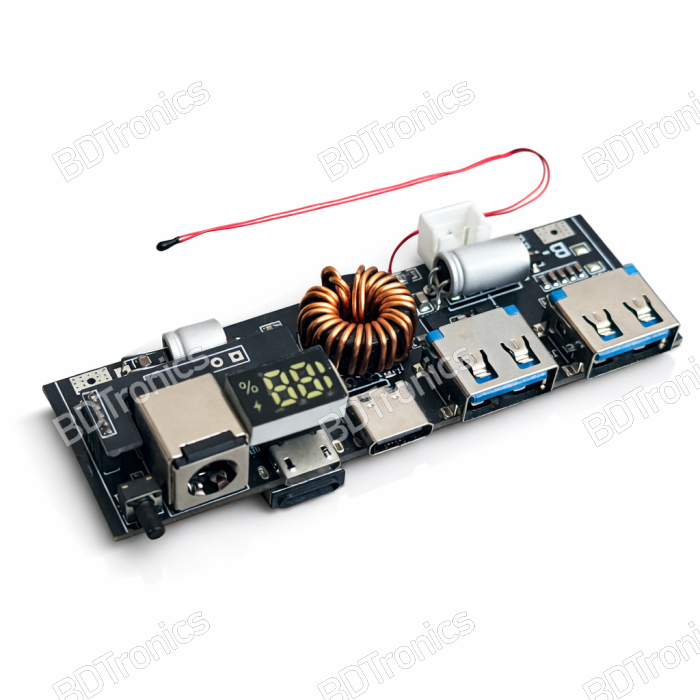

The 65W Power Bank Circuit 6 Port Bi-Directional Fast Charging QC3 PD3 Mobile Power Module is an advanced QC3.0 PD3.0 fast charging module designed for building high-efficiency DIY power banks and portable charging systems. It supports bi-directional charging, allowing both input and output through Type-C ports, making it ideal for modern fast-charging needs including laptops, smartphones, tablets, and portable electronics.

Featuring multiple output interfaces, including Type-C1, Type-C2, Type-A1, Type-A2, this 6-port power module ensures compatibility with various devices and fast-charging standards. Its built-in digital LED display provides real-time voltage and current readouts, giving users precise monitoring of charging performance.

This PD3.0 QC3.0 power bank module is compatible with 3S, 4S, and 5S battery packs and offers reliable high-power delivery with superior thermal and voltage protection. Whether you are designing a custom power bank, solar charger, or portable workstation, this module ensures fast and stable power performance.

Features:

• High-Efficiency Power Conversion: Advanced DC-DC conversion supports 65W to 100W output, maintaining low heat generation and maximum efficiency for continuous operation.

• Multiple Fast-Charging Protocols: Compatible with PPS, PD2.0, PD3.0, QC2.0, QC3.0, AFC, FCP, SCP, VOOC and other standards for wide compatibility with phones, tablets, and laptops.

• Bi-Directional Type-C Ports: Both Type-C1 and Type-C2 ports can act as input/output, supporting PD 60W fast charging in both directions.

• Smart Digital Display: Integrated LED digital screen displays voltage, current, and real-time power for each charging session.

• Compact Design: Slim board size (72mm x 27mm x 6mm) fits easily into portable battery enclosures and custom-built power banks.

• Battery Compatibility: Supports 2S–5S lithium battery packs (18650 or Li-Polymer) for high-capacity DIY power banks up to 25,000mAh.

• Safety Protection: Over-current, over-voltage, over-temperature, and short-circuit protection ensure long-term stability and safe operation.

• High-Quality Build: Industrial-grade PCB layout, gold-plated connectors, and efficient MOSFET design for consistent output power.

• Flexible Applications: Perfect for DIY power banks, solar charging systems, emergency backup power, robotics projects, and USB-C laptop chargers.

Specifications:

• Model: GXJA0707 Series

  • 3S 65W – GXJA0707-001

  • 4S 100W – GXJA0707-002

  • 5S 100W – GXJA0707-003

• Battery Type: Lithium Polymer / 18650 Cells

• Output Power: 65W / 100W (Type-C2 up to 60W max)

• Input Voltage: 5V / 9V / 12V / 15V / 20V

• PPS Output: 3.3V–21V / 3A

• PD3.0 Output: 5V3A / 9V3A / 12V3A / 15V3A / 20V5A

• QC2.0 / QC3.0 Output: Multiple levels up to 20V3A

• AFC / FCP / SCP / VOOC: Adaptive fast-charging protocol support

• Ports: Type-C1 (IN/OUT), Type-C2 (IN/OUT), Type-A1 (OUT), Type-A2 (OUT)

• Display: LED digital power indicator

• Dimension: 72mm × 27mm × 6mm

• Recommended Wire: 16AWG or thicker (support up to 10A)

• Battery Capacity Support: Up to 25,000mAh (with protection board)

Usage Instructions:

1. Connect the Batteries: Use 2S–5S lithium battery packs with a proper BMS protection board. Ensure polarity and wiring sequence are correct.

2. Wiring: Use thick wires (16AWG or higher) for main power connections to handle up to 10A safely.

3. Avoid Test Clips: Do not use alligator clips for testing; use properly soldered or crimped connections.

4. Power Display: The LED screen automatically shows charging voltage and current during use.

5. Fast-Charging Detection: The module automatically identifies connected devices and adjusts output according to supported protocol (QC, PD, etc.).

6. Cooling: Ensure good ventilation or a small heatsink for continuous high-power operation (especially above 60W).

7. Compatibility Check: Verify your devices support PD3.0 or QC3.0 before connecting. Incompatible devices may charge slowly or not at all.

8. Battery Precaution: Do not use nickel-metal hydride, dry cell, or lead-acid batteries. Only lithium-based cells are supported.

9. Preset Capacity: Set your battery capacity in the display if supported by your module version for accurate readings.

Application Examples

• DIY 65W/100W power bank for smartphones, tablets, or laptops

• Custom solar charging system for outdoor and off-grid power

• Power delivery unit for robotics and IoT projects

• Replacement board for commercial PD fast-charging banks

• Emergency or field-use multi-port power hub
