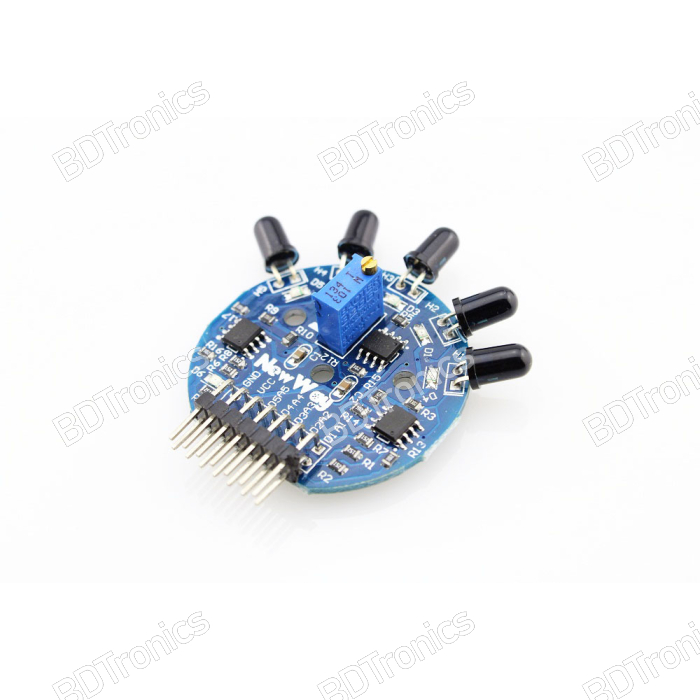

5 Way IR Infrared Flame Fire Sensor Module is a high precision 5-channel flame detection module designed for wide-area fire detection, robotics, automation, and safety systems in Bangladesh. This 5-channel flame sensor uses five infrared flame detectors arranged at 30-degree angles to provide a detection range greater than 120 degrees, making it ideal for detecting fire from multiple directions simultaneously. The module supports both analog and digital outputs, allowing flexible integration with Arduino, Raspberry Pi, ESP32, and other microcontrollers. With onboard potentiometer for sensitivity adjustment, LED indicators for real-time status monitoring, and high-accuracy 1% resistors, this flame sensor module delivers reliable, stable, and precise fire detection performance. It is sensitive to infrared radiation in the 700nm–1100nm wavelength range and can detect flame sources up to 80cm for lighter flames and even farther for larger flames.

Features:

• 5-channel infrared flame detection for wide-area coverage

• Detection angle greater than 120 degrees

• Analog and digital signal outputs for flexible usage

• Adjustable sensitivity via onboard potentiometer

• High precision 1% resistors for accurate and reliable detection

• LED indicators for easy debugging and visual status monitoring

• Compatible with Arduino, Raspberry Pi, ESP32, and other controllers

• Operates on a wide voltage range for versatile applications

• Compact round PCB design suitable for robotic and embedded systems

Specifications:

• Sensor Type: IR Infrared Flame Sensor Module

• Channels: 5 Channel Flame Detection

• Operating Voltage: 3.3V – 9V

• Output Type: Analog and Digital

• Detection Angle: >120 Degree

• Detection Wavelength: 700nm – 1100nm (Near Infrared)

• Board Diameter: 40mm

• Indicators: 5 LED Indicators

• Potentiometer: On-board Sensitivity Adjustment

• Pin Count: 14 Pins

Pin Definition:

• GND: Ground

• VCC: Input Voltage (3.3V – 9V)

• A1, A2, A3, A4, A5: Analog Output Pins

• D1, D2, D3, D4, D5: Digital Output Pins

Working Principle

• The module detects flame radiation in the short-wave near-infrared (SW-NIR) band

• Each sensor independently detects infrared light in the 700–1100nm wavelength range

• Detected radiation is converted into an electrical voltage signal

• Analog outputs provide precise intensity measurement

• Digital outputs trigger when the detected flame exceeds the set threshold

How to Use

• Connect VCC to a 3.3V–9V power supply and GND to ground

• Connect analog or digital output pins to microcontroller input pins

• Adjust detection sensitivity using the onboard potentiometer

• Monitor LED indicators for real-time flame detection status

• Use analog output for precise flame intensity measurement and digital output for simple triggering

Application Areas

• Fire detection and fire alarm systems

• Fighting robots and autonomous fire-fighting robots

• Industrial safety and monitoring systems

• Smart home fire detection projects

• Robotics and automation systems

• Educational electronics and sensor learning kits

Use Case

• Fire fighting robot navigation and flame localization

• Fire alarm triggering and safety monitoring

Package Includes

• 1 x 5 Way IR Infrared Flame Fire Sensor Module with Analog and Digital Output
