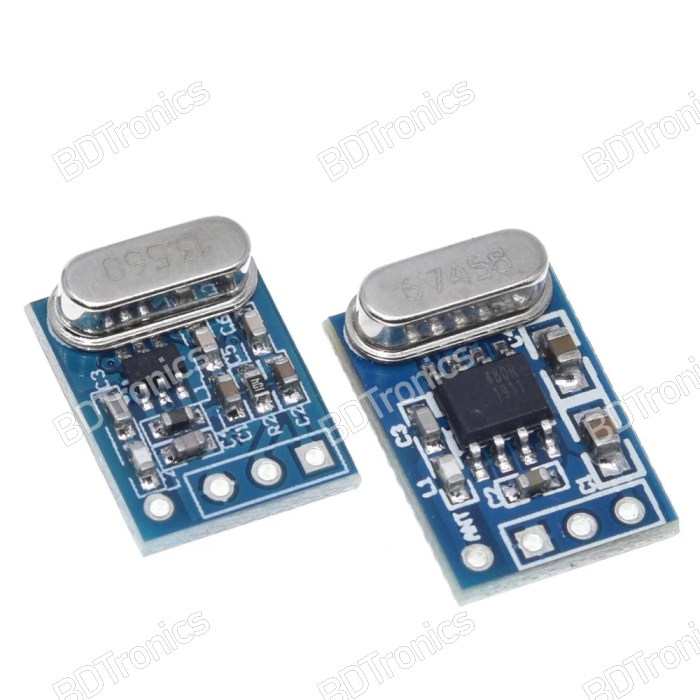

The 433MHz Wireless Transmitter Receiver Module SYN115 SYN480R is a compact and reliable RF communication module designed for short-range wireless data transmission. Ideal for applications such as remote controls, wireless sensor networks, and IoT devices, this module offers robust performance and ease of integration. The SYN115 SYN480R module is designed to operate in the 433MHz ISM band, ensuring compatibility with various wireless communication systems.

Key Features

• Frequency: Operates at 433MHz, a popular frequency for RF communication.
• High Sensitivity: Provides reliable communication with high sensitivity to ensure stable data transmission.
• Compact Design: Small size and lightweight design make it suitable for integration into various devices.
• Low Power Consumption: Designed for energy-efficient operation, making it ideal for battery-powered applications.
• Easy Integration: Simple to interface with microcontrollers and other electronic components.

Applications

• Remote controls for home automation systems.
• Wireless sensor networks for environmental monitoring.
• IoT devices for smart home and industrial applications.
• Security systems and alarm monitoring.

Specifications

Transmitter Module (SYN115):

• Frequency: 433MHz
• Modulation Type: Amplitude Shift Keying (ASK)
• Power Supply: 3.3V to 12V DC
• Output Power: Up to 10mW
• Data Rate: Up to 4kbps
• Transmission Distance: Up to 100 meters (open area)
• Antenna: Requires an external antenna for optimal performance
• Current Consumption: Approximately 10mA during transmission

Receiver Module (SYN480R):

• Frequency: 433MHz
• Modulation Type: Amplitude Shift Keying (ASK)
• Power Supply: 3.3V to 12V DC
• Sensitivity: -105dBm
• Data Rate: Up to 4kbps
• Reception Distance: Up to 100 meters (open area)
• Output Signal: Digital output
• Current Consumption: Approximately 5mA during reception

General:

• Operating Temperature Range: -20°C to +70°C
• Package: Typically comes in a compact module with pins for easy connection.
• Dimensions: 35mm x 15mm x 5mm (transmitter and receiver modules)

Note: The effective range of the modules may vary based on environmental factors and antenna quality. For best performance, use a suitable external antenna and ensure there are minimal obstructions between the transmitter and receiver.

How to interface with Arduino?

To interface the 433MHz Wireless Transmitter and Receiver Module (SYN115/SYN480R) with an Arduino UNO, follow these steps:

1. Wiring Connections

Transmitter Module (SYN115):

• VCC to 5V on Arduino
• GND to GND on Arduino
• DATA to Digital Pin 12 on Arduino

Receiver Module (SYN480R):

• VCC to 5V on Arduino
• GND to GND on Arduino
• DATA to Digital Pin 11 on Arduino

2. Library Installation

For simplicity, use the VirtualWire library to handle communication. You can install this library via the Arduino Library Manager.

• Install VirtualWire Library:
  • Open the Arduino IDE.
  • Go to Sketch > Include Library > Manage Libraries.
  • Search for VirtualWire and install it.

3. Code Examples

Transmitter Code

This code sends a message from the transmitter module:

#include <VirtualWire.h>

const int transmit_pin = 12; // Pin connected to the transmitter data pin

void setup() {
  vw_set_tx_pin(transmit_pin); // Set the pin for transmission
  vw_setup(2000); // Set the data rate (2000 bits per second)
}

void loop() {
  const char *msg = "Hello, World!"; // Message to send
  vw_send((uint8_t *)msg, strlen(msg)); // Send the message
  vw_wait_tx(); // Wait until the message is transmitted
  delay(1000); // Wait for 1 second before sending the next message
}
</pre>

Receiver Code

This code receives a message with the receiver module:

#include

const int receive_pin = 11; // Pin connected to the receiver data pin

void setup() {
  Serial.begin(9600); // Start serial communication
  vw_set_rx_pin(receive_pin); // Set the pin for reception
  vw_setup(2000); // Set the data rate (2000 bits per second)
  vw_rx_start(); // Start receiving data
}

void loop() {
  uint8_t buf[VW_MAX_MESSAGE_LEN];
  uint8_t buflen = VW_MAX_MESSAGE_LEN;

  if (vw_get_message(buf, &buflen)) { // Check if a message is received
    Serial.print("Received: ");
    for (int i = 0; i < buflen; i++) {
      Serial.print((char)buf[i]); // Print each character of the received message
    }
    Serial.println();
  }
}

4. Key Points:

• Power Supply: Ensure that both modules are powered with 5V. If you encounter instability, consider adding a capacitor (10μF) between VCC and GND.
• Antenna: For improved range, attach a wire or antenna to the ANT pin on both modules.
• Distance: Ensure that the transmitter and receiver are within the effective range (up to 1000 meters) and line-of-sight is optimal for maximum performance.

5. Testing

Upload the transmitter code to one Arduino and the receiver code to another. Open the Serial Monitor on the receiver Arduino to see the messages being received.

By following these steps, you can effectively set up wireless communication using the 433MHz modules with Arduino UNO.
