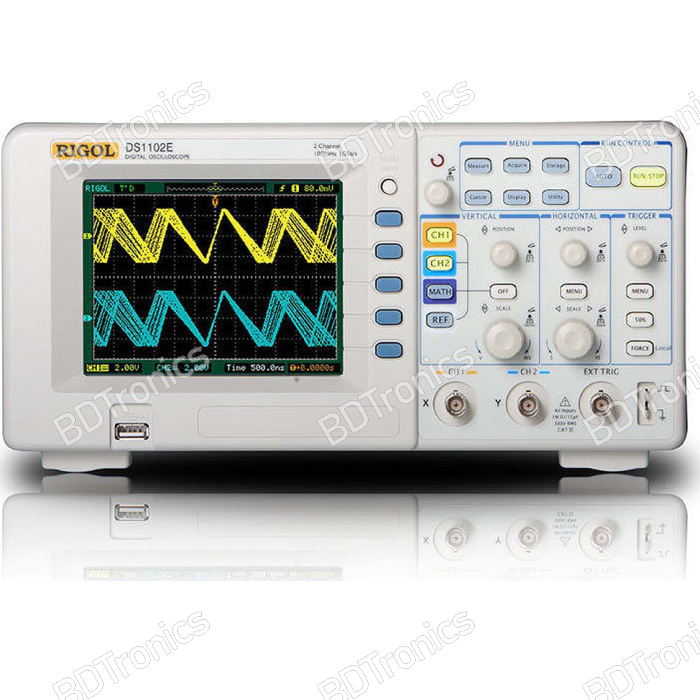

Rigol DS1102E 100MHz 2 Channels 1Gs/S Digital Storage Oscilloscope
The Rigol DS1102E is a high quality two channels digital storage oscilloscope. It offers a real-time sample rate of up to 1 GSa/s and a bandwidth of up to 100 MHz. ...See more
SKU
BTS-00000052
BDT 29,500.00
BDT 38,500.00
This product is out of stock. Are you interested about this product?
Delivery Info
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Order before 12.00PM
Outside Dhaka: 2-3 days
Cash on delivery all over BD
Quality
100% Authentic Product
Quality Product Guaranteed
Service
Safe & secure payment
Customer Support
Manufacturer Specs
| Model | DS1102E | DS1052E | DS1102D | DS1052D |
| Bandwidth | 100 MHz | 50 MHz | 100 MHz | 50 MHz |
| Acquisition | ||||
| Sample Modes | Real-Time Sample | Equivalent Sample | ||
| Sample Rate | 1GSa/s [1] , 500MSa/s | |||
| DS1102X | DS1052X | |||
| 25GSa/s | 10GSa/s | |||
| Inputs | ||||
| Input Coupling | DC, AC, GND | |||
| Input Impedance | 1MΩ±2%, the input capacity is 18pF±3pF | |||
| Probe Attenuation Factors | 1X, 5X, 10X, 50X, 100X, 500X,1000X | |||
| Maximum Input Voltage | 400V (DC+AC Peak, 1MΩ input impedance) 40V (DC+AC Peak) [2] |
|||
| Time Delay between Channel (typical) | 500ps | |||
| Horizontal | ||||
| Sample Rate Range | Real-Time: 13.65Sa/s-1GSa/s Equivalent: 13.65Sa/s-25GSa/s |
|||
| Waveform Interpolation | Sin(x)/x | |||
| Memory Depth | Channel Mode | Sample Rate | Memory Depth (normal) | Memory Depth (long memory) |
| Single Channel | 1 GS/s | 16 kpts | N/A | |
| Single Channel | 500MS/s Or lower | 16 kpts | 1 Mpts | |
| Dual Channel | 500MS/s Or lower | 8 kpts | N.A. | |
| Dual Channel | 500MS/s Or lower | 8 kpts | 512 kpts | |
| Scanning Speed Range (Sec/div) | 2ns/div~50s/div, DS1102X 5ns/div~50s/div, DS1052X 1-2-5 Sequence |
|||
| Sample Rate and Delay Time Accuracy | ±50ppm (any interval ≥1ms) | |||
| Delta Time Measurement Accuracy (Full Bandwidth) | Single: ±(1 Sample interval + 50ppm × reading + 0.6 ns) >16 averages: ±(1Sample interval + 50ppm × reading + 0.4 ns) |
|||
| Vertical | ||||
| A/D Converter | 8-bit resolution, all channels sample simultaneously | |||
| Volts/div Range | 2mV/div~10V/div (at the input terminal connecting to BNC) | |||
| Maximum Input | Maximum input voltage on analog channel CAT I 300Vrms, 1000Vpk; instantaneous overvoltage 1000Vpk CAT II 100Vrms, 1000Vpk RP2200 10:1:CAT II 300Vrms RP3200 10:1:CAT II 300Vrms RP3300 10:1:CAT II 300Vrms |
|||
| Offset Range | ±40V (250mV/div~10V/div) ±2V (2mV/div~245mV/div) |
|||
| Analog Bandwidth | 100MHz (DS1102D,DS1102E) 50MHz (DS1052D, DS1052E) |
|||
| Single-shot Bandwidth | 100MHz (DS1102D, DS1102E) 50MHz (DS1052D, DS1052E) |
|||
| Selectable Analog Bandwidth Limit (typical) | 20MHz | |||
| Lower Frequency Response (AC –3dB) | ≤5Hz (at input BNC) | |||
| Rise Time at BNC (typical) | <3.5ns, <7ns, respectively at 100MHz, 50MHz | |||
| Dynamic range | ±5div | |||
| DC Gain Accuracy | 2mV/div-5mV/div: ±4% (In Normal or Average acquisition mode) 10mV/div-10V/div: ±3% (In Normal or Average acquisition mode) |
|||
| DC Measurement Accuracy, Average Acquisition Mode | When vertical displacement is zero, and N ≥16: ±(DC Gain Accuracy×reading+0.1div+1mV) When vertical displacement is not zero, and N ≥16: ±[DC Gain Accuracy×(reading+vertical displacement)+(1% of vertical displacement) + 0.2div] When vertical scale is between 2mV/div and 245mV/div, add 2mV more for setting value. When vertical scale is between 250mV/div and 10V/div, add 50mV more for setting value. |
|||
| Delta Volts Measurement Accuracy (Average Acquisition Mode) |
Under sam e setting and condition, the voltage difference (?V) between any two points in the waves coming from the average of more than 16 waves have been acquired: ±(DC Gain Accuracy×reading + 0.05 div) | |||
| Trigger | ||||
| Trigger Sensitivity | 0.1div~1.0div (adjustable) | |||
| Trigger Level Range | Internal | ±6 divisions from center of screen | ||
| EXT | ±1.2V | |||
| Trigger Level Accuracy (typical) applicable for the signal of rising and falling time ≥20ns y | Internal | ±(0.3div × V/div)(±4 divisions from center of screen) | ||
| EXT | ±(6% of setting + 200 mV) | |||
| Trigger Offset | In Normal mode: pre-trigger (memory depth/ 2*Sample rate), delayed trigger 1s | |||
| In Slow Scan mode: pre-trigger 6div, delayed trigger 6div | ||||
| Trigger Holdoff Range | 500ns~1.5s | |||
| Set Level to 50% (typical) | When input signal frequency ≥50Hz | |||
| Edge Trigger | ||||
| Edge trigger slope | Rising, Falling, Rising + Falling | |||
| Pulse WidthTrigger | ||||
| Trigger Condition | (>, <, =) Positive pulse width, (>, <, =) Negative pulse width | |||
| Pulse Width Range | 20ns ~10s | |||
| Video Trigger | ||||
| Video Standard Line Frequency | Support for standard NTSC, PAL and SECAM broadcast systems. Line number range: 1~525 (NTSC) and 1~625 (PAL/SECAM) | |||
| Slope Trigger | ||||
| Trigger Condition | (>, <, =) Positive slope, (>, <, =) Negative slope | |||
| Time Setting | 20ns~10s | |||
| Alternate Trigger | ||||
| Trigger on CH1 | Edge, Pulse Width, Video, Slope | |||
| Trigger on CH2 | Edge, Pulse Width, Video, Slope | |||
| Pattern Trigger [2] | ||||
| Pattern Type | D0~D15 select H, L, X, , | |||
| Duration Trigger [2] | ||||
| Pattern Type | D0~D15 select H, L, X | |||
| Qualifier | >, <, = | |||
| Time Setting | 20ns~10s | |||
| Measurements | ||||
| Cursor | ||||
| Manual | Voltage difference between cursors (∆V) Time difference between cursors (∆T) Reciprocal of ∆T in Hertz (1/∆T) |
|||
| Track | Voltage value for Y-axis waveform Time value for X-axis waveform |
|||
| Auto | Cursors are visible for Automatic Measurement | |||
| Auto Measure | Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay1→2 , Delay1→2 | |||
Remarks:
[1] Only one channel is available when the Sample rate is 1GSa/s.
[2] For DS1000D Series.
| General Specifications | |||
| Display | |||
| Display Type | 145mm (5.6 inch) diagonal TFT Liquid Crystal Display | ||
| Display Resolution | 320 horizontal ×RGB×234 vertical pixels | ||
| Display Color | 64k color | ||
| Display Contrast (typical) | 150:1 | ||
| Backlight Brightness (typical) | 300 nit | ||
| Probe Compensator Output | |||
| Output Voltage (typical) | Approximately 3Vpp (peak to peak value) | ||
| Frequency (typical) | 1kHz | ||
| Power Supply | |||
| Supply Voltage | 100 ~ 240VAC RMS , 45~440Hz, CAT II | ||
| Power Consumption | Less than 50W | ||
| Fuse | 2A, T level, 250 V | ||
| Environmental | |||
| Ambient Temperature | Operating 10℃ ~ 40℃ Non-operating -20℃ ~ +60℃ |
||
| Cooling Method | fan cooling | ||
| Humidity | below +35℃ : ≤90% relative humidity +35℃ ~ +40℃ : ≤60% relative humidity |
||
| Altitude | Operating at 3,000 m or below Non-operating at 15,000 m or below |
||
| Mechanical | |||
| Dimensions | Width | 303mm | |
| Height | 154mm | ||
| Depth | 133mm | ||
| Weight | Without package | 2.3kg | |
| Packaged | 3.5kg | ||
| IP Protection | IP2X | ||
| Calibration Interval | The recommended calibration interval is one year | ||
Tech Specs
Oscilloscopes/Digital Oscilloscopes Template |
|
|---|---|
| Bandwidth | 100 MHz |
| Channels | 2 |
| Sampling Rate | 1 GS/S |
| Memory | 1 MP [megapoints] (1024 kB) |
| Rise Time | 3.5 ns |
| Screen Size | 5.7 IN |
| Bits | 8 |
Test Equipment General Attributes |
|
| Unique Features | 1 GSa/s maximum real-time sample rate, 25 GSa/s maximum equivalent-time sample rate 1Mpts long Memory Depth 100 MHz, 50 MHz Bandwidths Ultra compact design: 303mm x 154mm x 133mm (WxHxD) 64 k TFT color LCD, bright and vivid waveform display Advanced trigger modes: Edge, Video, Pulse Width, Slope, Alternate Adjustable bigger sensitivity: Effactively filter noise from bigger signal and avoid false trigger 20 automatic measurements |
See More
